Dpp80 Mini Automatic Thermoforming Sealing Pill Tablet Capsule Blister Packaging Machine

Dpp80 Mini Automatic Thermoforming Sealing Pill Tablet Capsule Blister Packaging Machine

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Description：

DPP-series blister packing machine is a machine adopts in the position of quality, good capability, all-round function, good reliability and high productivity. It adopts auto-controlling technology and uses new material, new craft, and new technology to make the structure more reasonable.

Packaging Range:

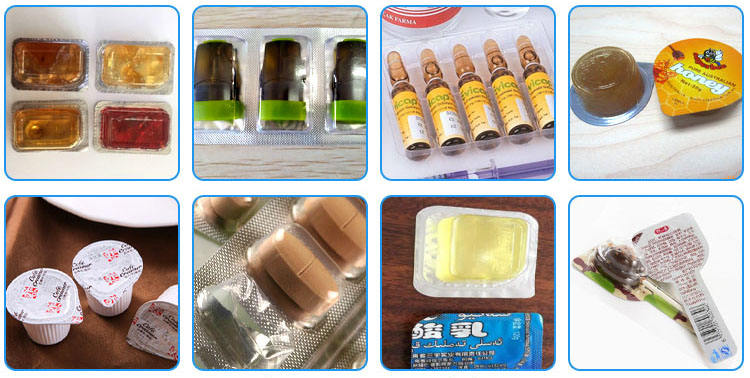

It is suitable for packing capsules, tablets, candy, honey, jam, liquid, electronically element and similar material, with

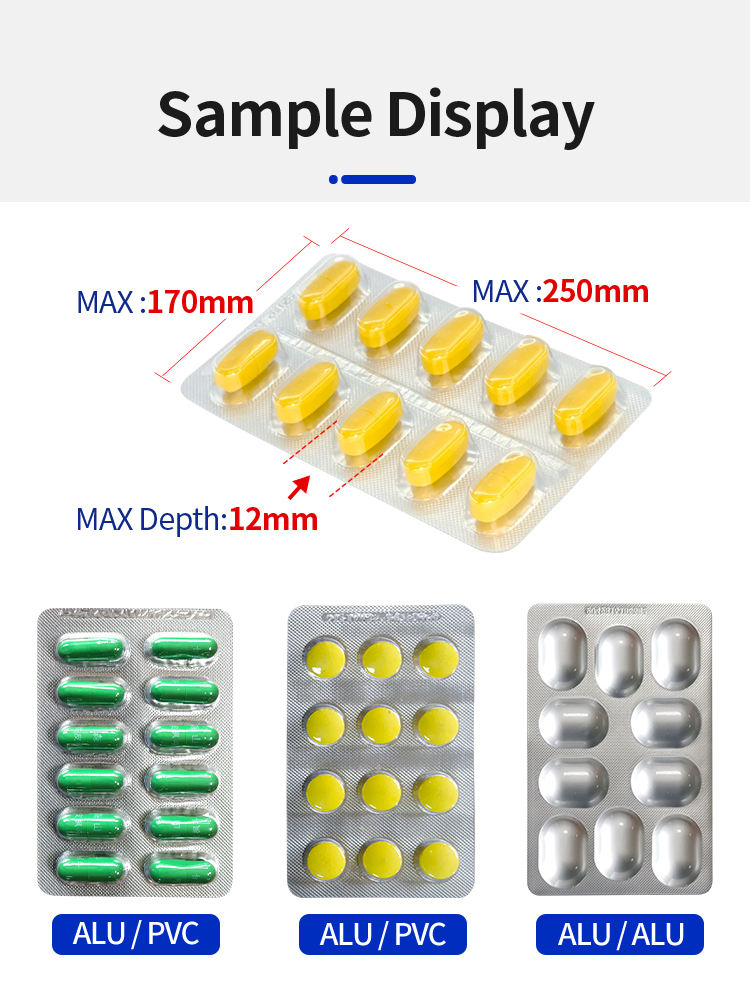

sealing packing in aluminum PVC, paper PVC Blister Package.

Specification

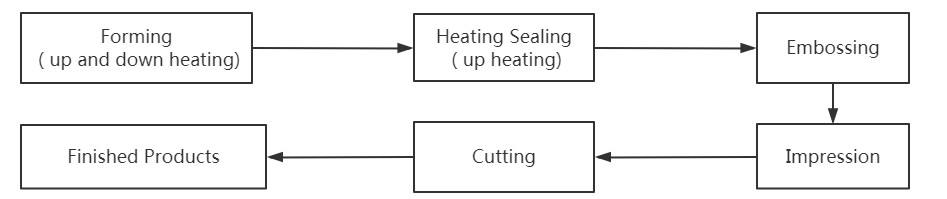

Working Process ：

1. The design structure of the machine meets the requirements of GMP standards and ergonomic design principles, adopts advanced intelligent drive and control technology, and all parts in contact with materials are made of SUS316 stainless steel with strong corrosion resistance

2. The equipment material adopts the combined structure design of carbon steel and aluminum alloy, and the aluminum alloy is hard anodized to improve the corrosion resistance, wear resistance, heat resistance and insulation of aluminum parts. The film hardness can reach more than hv400 and the thickness can reach dozens or even hundreds μ m. With easy

thickness control and high dimensional accuracy, it is widely used in aviation, aerospace, ship and other fields. The use of this material in packaging equipment can greatly improve the service life and stability of packaging machinery

3. The fuselage adopts split assembly structure, which can be divided into three sections to facilitate users to enter the
decorated purification workshop smoothly

4. Switching between aluminum plastic and aluminum can be realized only by changing the mold
5. It has the camera waste removal function (optional) to ensure the integrity of the product
6. There is an independent station for printing batch number and pressing tear line, which can make the batch number more clear
and beautiful
7. Ensure the safety of operation, and each station has a visual safety cover
8. Flat plate structure, which can pack oval, square, triangle and other special-shaped items

odel	DPB-80	DPB120	DPB150	DPP 250
Punch frequency	10-33times/min	10-33times/min	10-35times/min	10-50times/min
Production capacity	1980plates/hour	2400plates/hour	4200plates/hour	7500plates/hour
Max. Forming area & Depth	105x70(standard depth<15mm)	125x70(standard depth<15mm)	145xll0(standard depth<15mm)	245*115(standard depth<15mm)
Max. Forming area & Depth		Max. Depth 25mm	Max. Depth 25mm	Max. depth 26mm	Max. depth 26mm
Standard Stroke range	30-80mm	30-80mm	50-120mm
Standard plate size	80x57mm	80x57mm	80x57mm	80*57mm
Air pressure	0.4-0.6Mpa	0.4-0.6Mpa	0.4-0.6Mpa	0.4-0.6mpa
Compressed air required	Air compressor>0.3m3/min	Air compressor>0.3m3/min	Air compressor>0.3m3/min	Air compressor>0.3m3/min
Total power supply	220V 50Hz 2.4Kw	220V 50Hz 2.4Kw	220V 50Hz 2.4Kw	220V 50Hz 6.5Kw
Main motor	0.75Kw	0.75Kw	1.5KW	1.5kw
PVC hard Film	0.15-0.5xll0mm	0.15-0.5 x 130mm	0.15-0.5x 160mm	0.15-0.5x 160mm
PTP Aluminum film	0.02-0.035 x 80mm	0.02-0.035 x 130mm	0.02-0.035 x 160mm	0.02-0.035 x 250mm
Mould cooling	Tap water or Recycling water	Tap water or Recycling water	Tap water or recycling water	Tap water or recycling water
Overall Dimension(LxWxH)	1450x590x 1100mm	1870x610x1100mm	2315 x 635 x1405mm	3000×730×1600mm
Weight	465kg	660kg	890KG	1600kg
Noise	<75dBA	<75dBA	<75dBA	<75dBA

FAQ

Q1: Are you a manufacturer or a trader?

A: As a professional manufacturer, we have our own factory, and if a customer has reasonable demand, out machine can be customized.

Q2: How do you ensure the machine quality?
A: As a professional manufacturer of pharmaceutical devices for more than 15years, with strict management, advanced
processing technologies and professional workers, we are confident for our machines quality. And before any
machine is delivered, will be carefully tested.

Q3: How can I trust you for the first cooperation?
A: Since our company was founded, we have registered in China Industry and Commerce Bureau. We passed the SGS &
ISO certification, and we are a senior member in Alibaba international platform (more than 12years). For the first deal between us, the Alibaba's Trade Assurance service can be used, which will fairly protect your rights and money throughout the transaction process.

Q4: How do I place an order, and how is it completed?
A: Under the condition that the buyer is satisfied with the quotation and pre-sales service:
1. Both of parties sign on a contract, and then the seller prepare the PI.
2. The buyer arranges the down payment.
3. The seller prepares the machines.
4. After the machine is completed, have the test & trial run.
5. Before the delivery, if the buyer requires, have the necessary inspecting.
6. As per the contract/ PI amount, the buyer balances the payment.
7. The machine is going to be shipped.
8. After the machine is received, the seller provide the buyer guidance for the installation and the debugging.
