Electric rotary vibrating sieve sifter with wear resisting mesh screen for oil sand soil

Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

  • Food & Beverage Factory, Energy & Mining, Food & Beverage Shops, Chemical pharmaceutical

  • Turkey, United Kingdom, United States, Mexico, Russia, Spain, Japan, Malaysia

  • Provided

  • Provided

  • Ordinary Product

  • 2 years

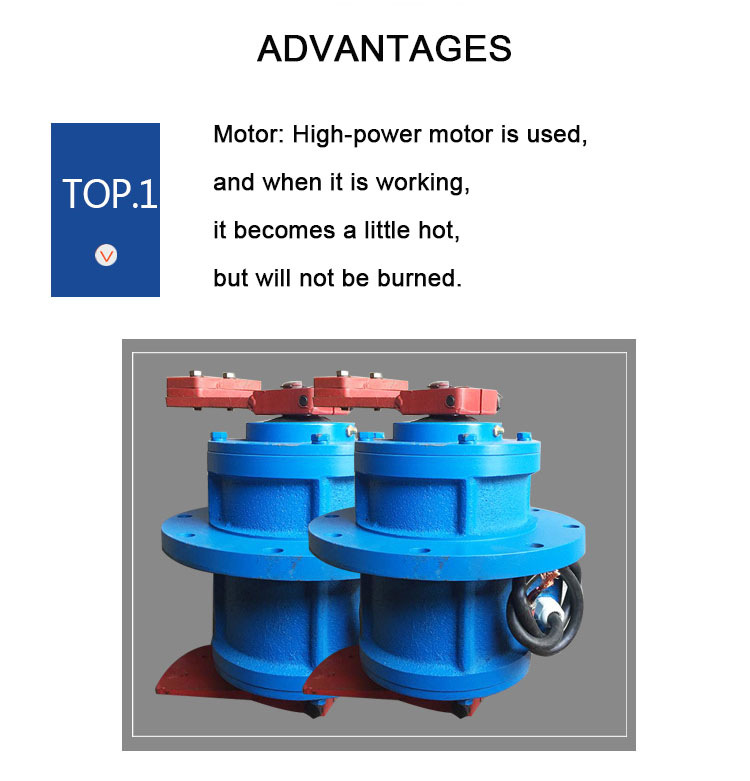

  • Motor

  • New

  • Circular

  • Chemicals

  • Liaoning, China

  • Xianglong

  • 220V/380V/415V/450V

  • 800*950*1000 mm

  • 300 KG

  • 2 years

  • Rotary vibrating screen

  • 730

  • 0.4183

  • 2 ~ 500mesh/inch

  • 1 ~ 5

  • 60 ~ 400Kg

  • Stainless Steel 304

  • Fine powder screening

  • 5-325 Mesh

  • >0.3t/h

Product Description

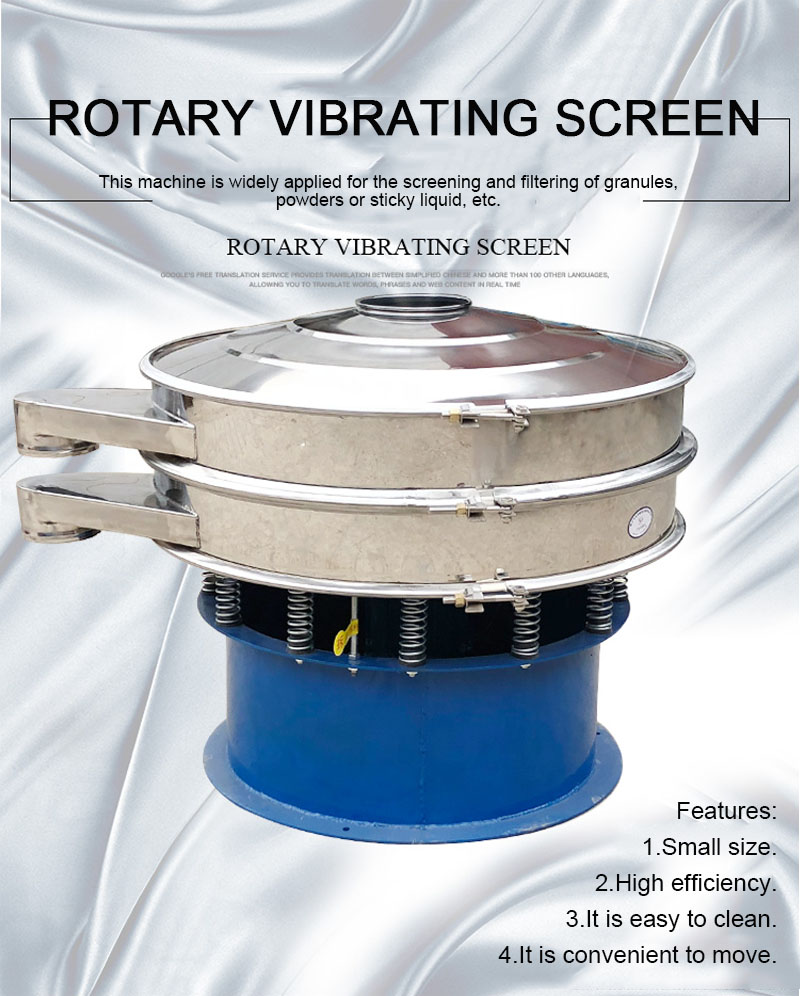

Rotary vibrating screen
Brief introduction:
The big disc is driven by the vertical-type vibrating motor, so the whole sieve is driven, and on the sieve, powder or particles have the 3-dimentional movement and are separated. When the machine is working, the sieve will not be blocked.

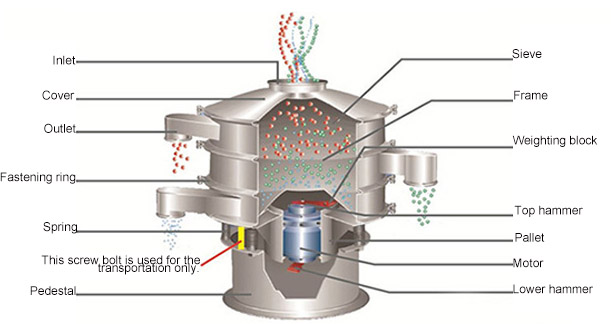

Schematic diagram:

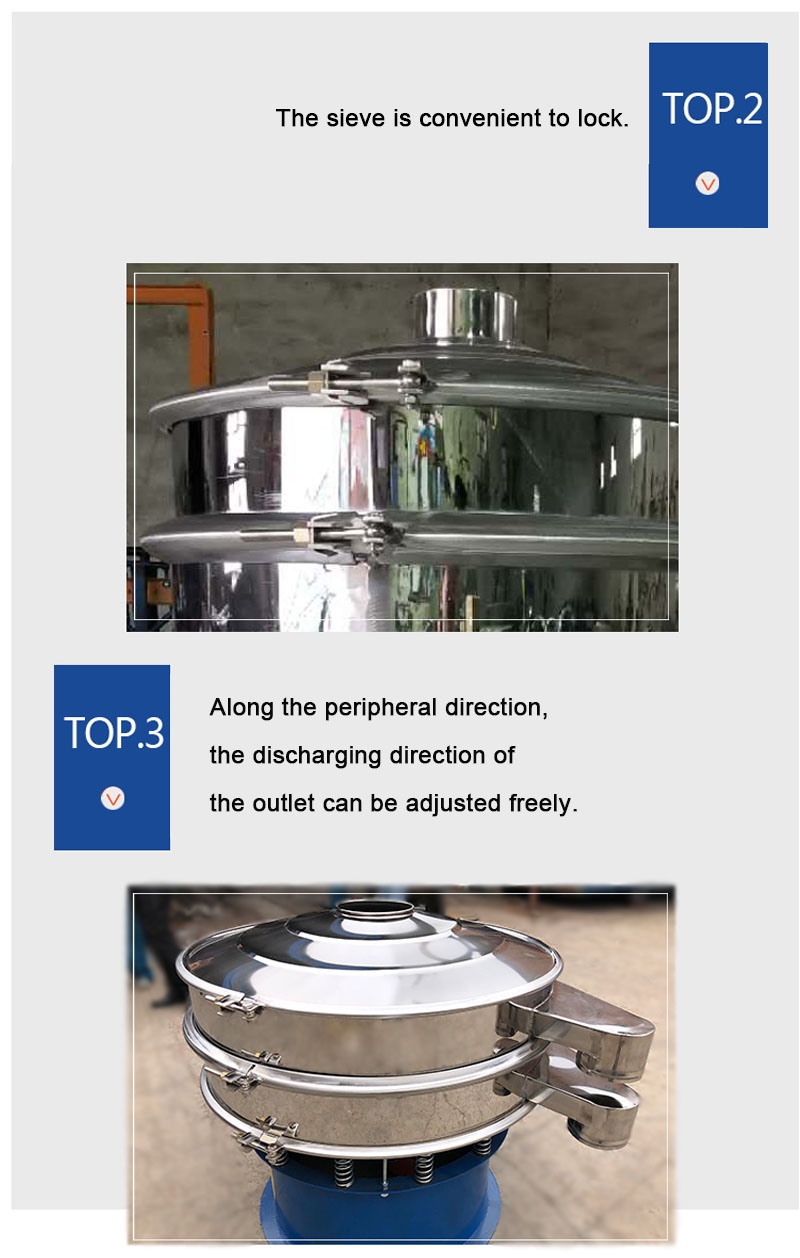

Details Images

Working principle:

By the heavy hammers, which are installed on both ends of the motor shaft, the motor movement is transformed into 3-dimensional movement (horizontal, vertical and sloping), and then is transmitted to the sieve surface. When the phase angles of the upper/ lower hammers of the motor are changed, the moving direction of powder or particles can be changed.

Structure & Flow chart：

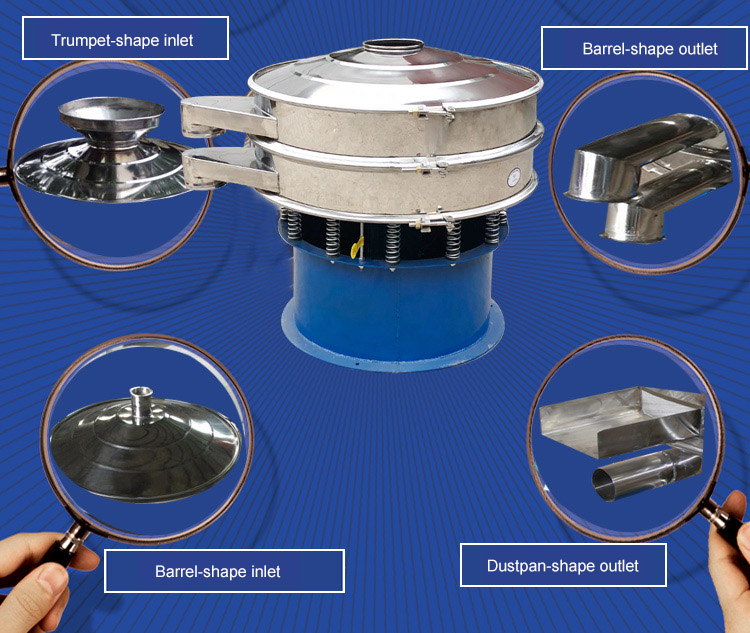

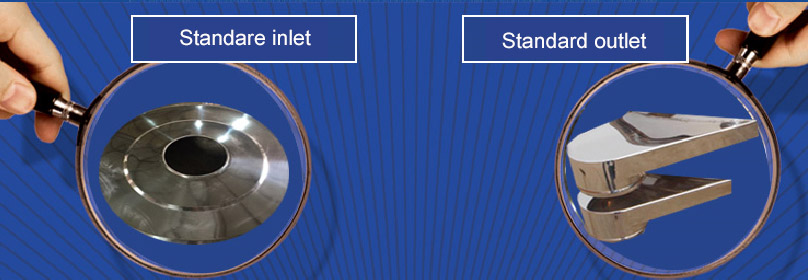

Inlet → Upper cover → Small ring → Upper frame → Outlet → Unequal double rings → Sieve frame → Rubber balls → Isolating ring → Balls supporting board → Big U → Fastening ring →Middle ring → Lower cone → Bottom frame → Outlet → Small V → Big ring → Big disc → Big disc → Vibrator barrel → Motor →Upper spring seat → Spring → Lower spring seat → Bottom barrel → Access door → Mat

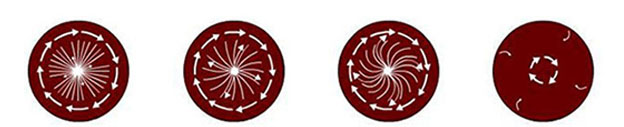

5 degree
35 degree
60 degree
90 degree
Have the crude screening for the raw materials, in bulk.
Can be used for the screening for most of products.
Have the screening for those fine products.
Special purpose.

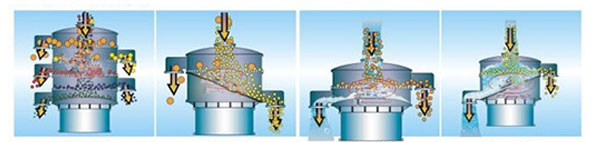

Schematic diagram:
For solid For solid For liquid For liquid

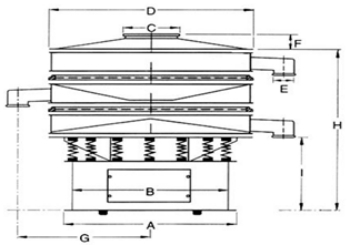

Specification
S.N.
Name
Specification
1
Nominal diameter
800mm
2
Effective sieving diameter
760mm
3
Effective sieving area
0.4183m2
4

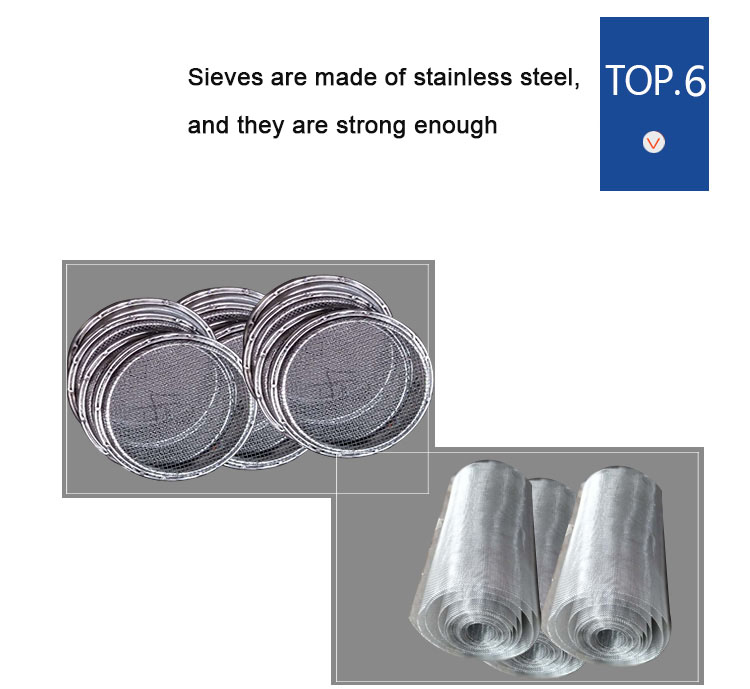

Sieve material
Stainless steel 304
5
Sieve type
Woven
6

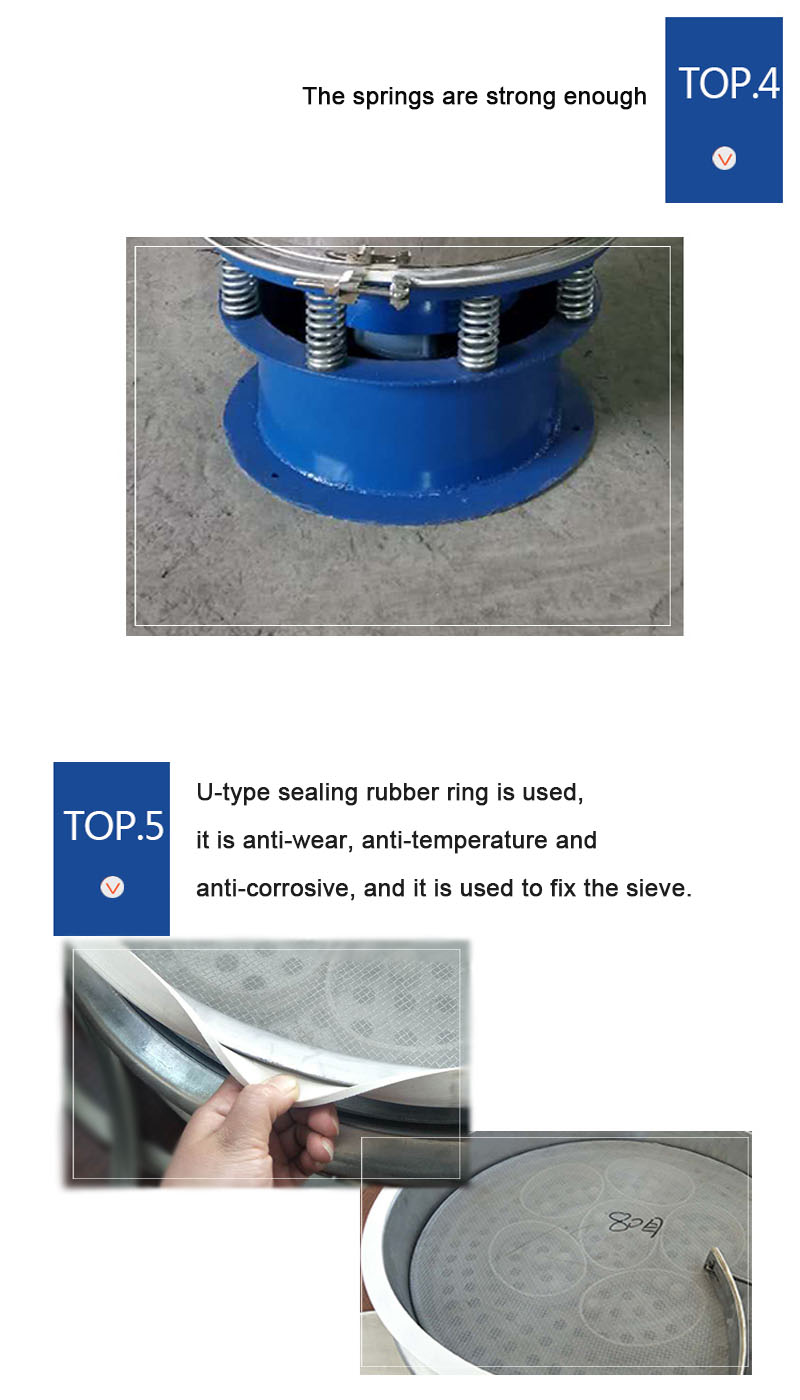

Spring
Galvanized steel (There is the rubber seat, and the noise is low)
7
Big disc
Q235B. Thickness:
8
Bottom barrel
Q235B. Thickness:
9
Middle frame
Stainless steel 304. Thickness: 2mm
10
Lower cone
Stainless steel 304. Thickness: 1.5mm
11
Upper cover
Stainless steel 304. Thickness: 1.5mm
12
Ring
Stainless steel 304. Thickness: 3mm
13
Motor
YZUL-10-4
14
Motor capacity
1500times/min
15
Voltage
380V, 50Hz
16
Motor power
0.75Kw
17
Motor excitation force
8KN
18
Insulating
B
Model
400
600
800
1000
1200
1500
1800
2000
Sieve diameter, mm
Φ340
Φ540
Φ730
Φ900
Φ1100
Φ1400
Φ1700
Φ1886
Screening area, m2
0.0907
0.2289
0.4183
0.6359
0.9499
1.5386
2.2687
2.7922
Sieve size
2 ~ 500mesh/inch
Layers
1 ~ 5
1 ~ 5
1 ~ 5
1 ~ 5
1 ~ 5
1 ~ 5
1 ~ 3
1 ~ 3
Power, Kw
0.25
0.55
0.735
1.5
1.5
2.2
3.0
3.0
Material
Stainless steel & carbon steel
Machine weight, Kg
60 ~ 400Kg
Machine color
Be customized.
Notes:If any change of data, we will not notify further
Related products
view more >> Recommended by seller

freeze dry machine/freeze dryer china/vacuum freeze drying equipment

$10,000.00 - $400,000.00 / Set

1.0 Sets

Low Cost Factory Price High Speed Manual Automatic Small Mini Automatic Flow Pack Horizontal Rotary Food Pillow Packing Machine

$3,300.00 - $49,800.00 / Set

1.0 Sets

Automatic Round Label Cans Table Top Flat Labeling Machine Small Round Bottle Labeling Machine

$5,600.00 / Set

1 Set

High Efficient Automatic Ampoule Filling And Sealing Machine,Glass Bottle Filling Machine

$7,390.00 - $8,300.00 / Set

1 Set

Solid Bowl Centrifuge Ejecting Disk Centrifuge For Waste Oil Yeast Centrifuge Separator

$5,899.00 / Set

1 Set

Pulverizer Grinding Equipment Hammer Grinder Machine Industrial Food Processor Machine

$19,000.00 / Set

1 Set

3d Series Three Dimensions Mixer For Chocolate Powder In Flour

$6,500.00 / Set

1.0 Sets

Large Capacity Disc Centrifuges For Microalgae Seperation

$5,899.00 / Set

1 Set
Packing & Delivery
Company Profile
Liaoyang Xianglong Internaitional Machinery Trading Co., Ltd. is originated from Liaoyang Pharmaceutical Machinery Plant (which was the first state-owned pharmaceutical machinery plant in China and was founded in 1947), and is professional in the manufacturing & trading of variable kinds of pharmaceutical devices, including separating machines, drying machines, liquid /powder /capsule/ pills filling machine, cartonning machines, membrane packing machines and glass-lined tanks, etc. With professional technicians and strict quality control system, our machines are widely applied in industries of pharmaceutical, petrol, chemical, food and environment protecting, etc., and besides our regular customers in China, our machines have been exported to many countries & regions in Europe, America, Southeast Asia, Africa, South America and the Middle East, etc., and good reputation is gained.
FAQ
Q1: Are you a manufacturer or a trader?
A: As a professional manufacturer, we have our own factory, and if a customer has reasonable demand, out machine can be customized.

Q2: How do you ensure the machine quality?
A: As a professional manufacturer of pharmaceutical devices for more than 15years, with strict management, advanced
processing technologies and professional workers, we are confident for our machines quality. And before any
machine is delivered, will be carefully tested.

Q3: How can I trust you for the first cooperation?
A: Since our company was founded, we have registered in China Industry and Commerce Bureau. We passed the SGS &
ISO certification, and we are a senior member in Alibaba international platform (more than 12years). For the first deal between us, the Alibaba's Trade Assurance service can be used, which will fairly protect your rights and money throughout the transaction process.

Q4: How do I place an order, and how is it completed?
A: Under the condition that the buyer is satisfied with the quotation and pre-sales service:
1. Both of parties sign on a contract, and then the seller prepare the PI.
2. The buyer arranges the down payment.
3. The seller prepares the machines.
4. After the machine is completed, have the test & trial run.
5. Before the delivery, if the buyer requires, have the necessary inspecting.
6. As per the contract/ PI amount, the buyer balances the payment.
7. The machine is going to be shipped.
8. After the machine is received, the seller provide the buyer guidance for the installation and the debugging.
