Home » Products » Solid Preparation & Filling Machine » Capsule Filling Machine » capsules polishing machine » Hot Sell Vibration Deduster Polish Machine Small Polishing for Pill Capsule Polishing

Hot Sell Vibration Deduster Polish Machine Small Polishing for Pill Capsule Polishing

Hot Sell Vibration Deduster Polish Machine Small Polishing for Pill Capsule Polishing

Quantity:




Inquire Add to Basket

Place of Origin:
Liaoning, China
Brand Name:
Xianglong
Condition:
New
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
2 years
Core Components:
Motor
Productivity:
800000Pcs/h
Voltage:
220/110V 50-60HZ
Dimension(L*W*H):
550*550*(H:1350-1500)mm
Warranty:
2 years
Key Selling Points:
Easy to Operate
Applicable Industries:
Food & Beverage Factory, Pharmaceutical factory
Showroom Location:
United Kingdom, United States, Pakistan, Mexico, Russia
Weight (KG):
70
Product name:
Rotary tablet sieving machine
Function:
Tablet/Capsule polishing
Material:
SS304
Noise(db):
<75
Volume:
0.1mpa
After-sales Service Provided:
Online support
Certification:
GMP

Product Description

Product Description

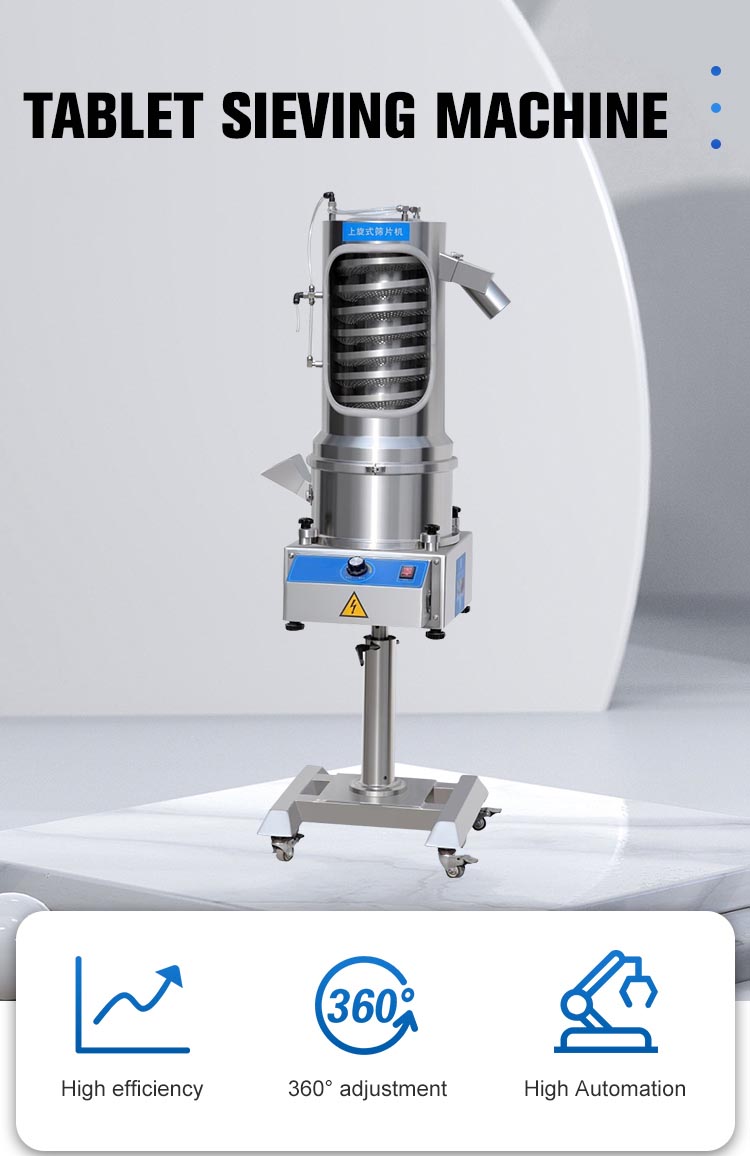

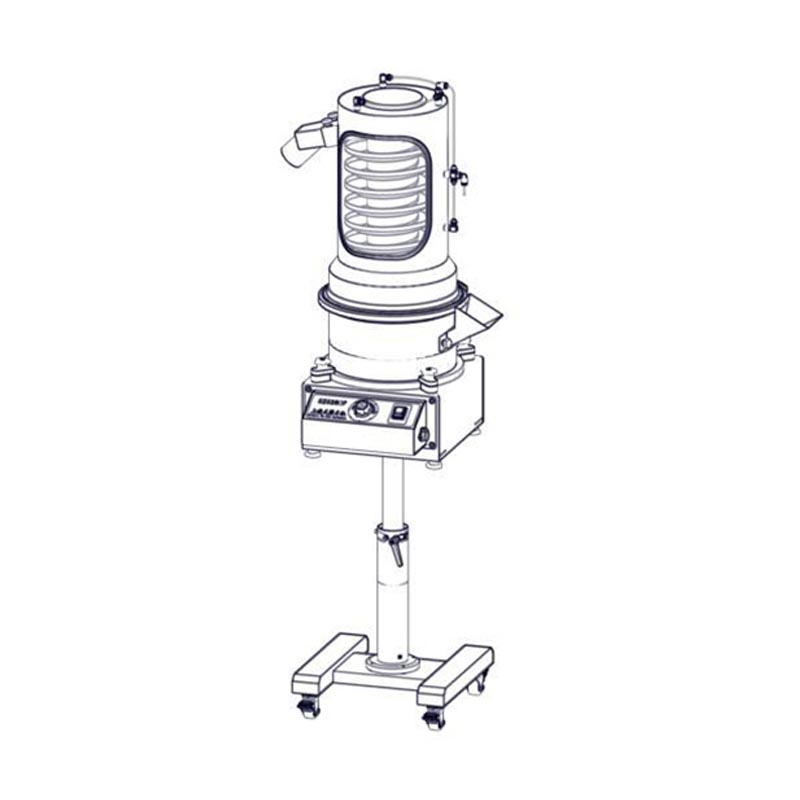

SZS230 Capsule Polisher rotary tablet sieving machine deduster

SZS series top spin sieve machine has utilized many advanced technologies in its creation. This top spin sieve machine is able to act as both elevating and dedusting machine, which made it an unusual combination with other tablet-compressing machine and metal detection machine, and also made it extremely applicable in the filed of pharmacy, chemical engineering, electronics, and food.

The machine can do the entrance and exit of 360 degrees of adjustment, convenient production, space saving, outstanding production efficiency, can meet the mass production of 3-35mm diameter of various shaped tablets; the new device design, so as to ensure the machine running smooth, low noise.

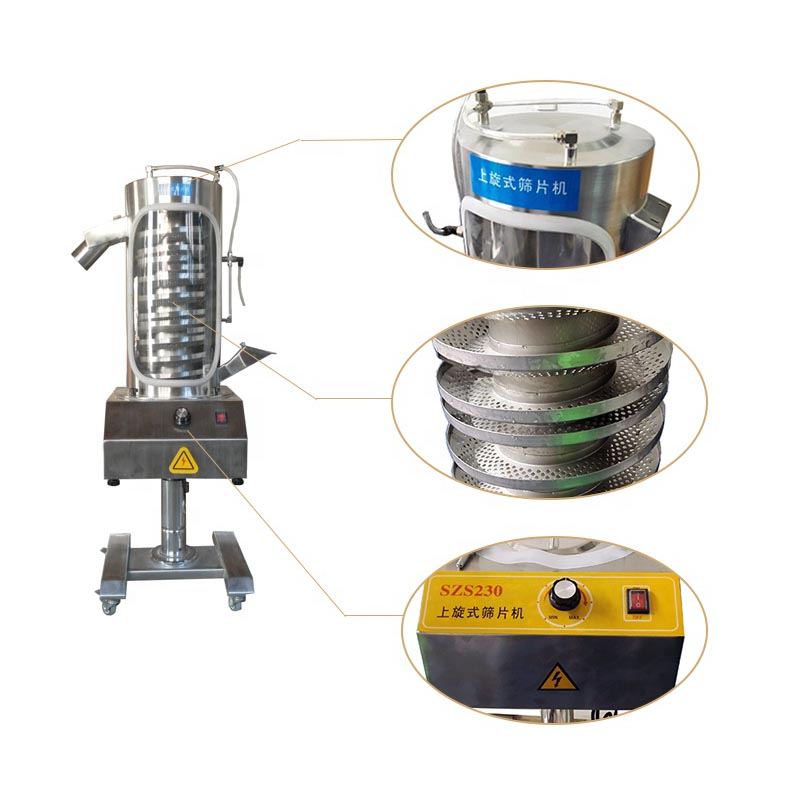

Details Images

Specification

Specification:

Its advantages include long dedusting path, automatic tablet polishing of all sides/angles, and high quality dedusting without damage to the tablets. The machine is also employed many new designs and features to ensuring better and safer operations. Furthermore, it can act as a delivering device for any shapes and sizes of tablets that need to be dedicated in dedusting. It is designed and manufactured in conformance to cover GMP standard.

It has an adjustable feeding height of 835-985mm and adjustable chute of 1070-1220mm, which is highly flexible to mount and enables the operator to remove dust and burrs from tablets in a process. Dust and burrs are removed from the tablets while they are being transported upwards by vibration through a continuous spiral. Additional features of the Uphill Deduster are variable throughput rates, height advantage for subsequent stages of the process and ready safe exhaust of the dust through a central suction pipe.

1	Max. capacity	800000pcs/h (For 0.6mm tablet)
2	Max. tablet diameter	Φ25mm
3	Power supply	1P, 220/110V, 50 ~ 60Hz
4	Machine size	550×550×(H: 1350 ~ 1500), mm
5	Machine weight	70Kg
6	Compressed air	0.1m3/min, 0.05Mpa
7	Vacuum dust collecting	2.7 m3/min, 0.01Mpa
8	Dust-collecting distance	6m
9	Max. lifting height	1220mm
